캐비티 밴드 패스 필터

  • <{$article.krname}>
<{$article.krname}>

16.7-16.9GHz 캐비티 대역 통과 필터

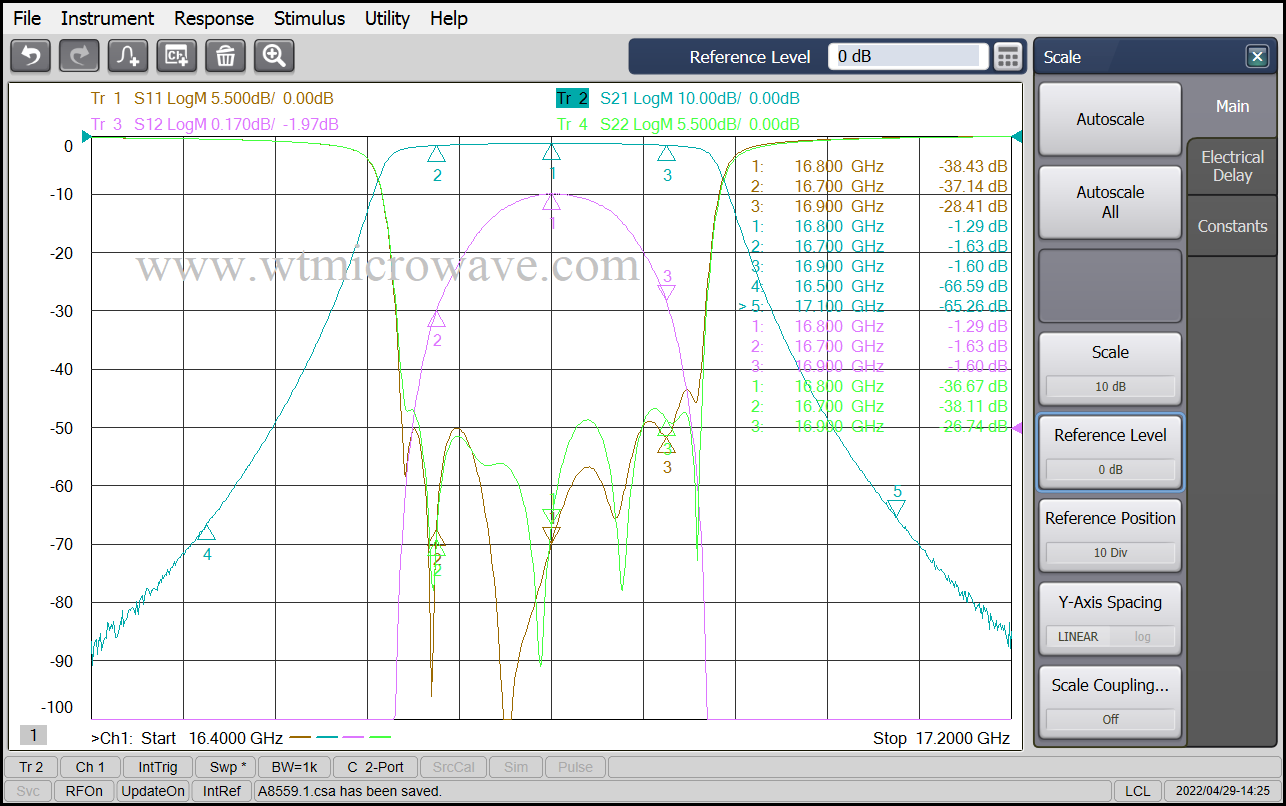

기술 데이터

S/N

Item

Parameters

1

Center Frequency(F0)

16.8GHz

2

Pass Band Bandwidth

±100MHz (16.7 ~ 16.9GHz)

3

Pass Band Insertion Loss

≤1.9dB

4

Pass Band Ripple

≤0.6dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

≥55dB @ F0±300MHz (DC ~ 16.5GHz , 17.1 ~ 30GHz)

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃

12

Material

Housing: H62 Copper alloy

Cover: H62 Copper alloy

Tuning screw: H62 Copper alloy

Connectors: Stainless Steel

Other screw: Stainless Steel

13

Dimensions

80*16*9mm

14

Net weight

0.081 KG
